#638RSE   90 deg Electric Nose Retract Robostrut Ready

#638RSE 90 deg Electric Nose Retract Robostrut Ready

  • 143.95

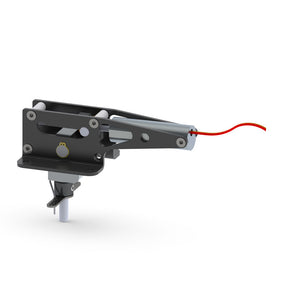

90 degree RoboStrut Ready Electric Rail Mount Nose Retract Mechanism Only (each)

These series of pneumatic retracts are designed for R/C aircraft weighing up to 24lbs.. Constructed with heat treated aluminum alloy frames and trunions, these gear are furnished with 1/2_„? dia. 4130 alloy steel tubular RoboStruts. They offer long dependable service for large aircraft flying off grass or paved runways. Powered by an electric actuator, all of these units feature positive up and down locks. Available in standard 90‘?, 85‘? Main Gear, and 90‘?, 95‘?, 100‘?, 105‘?, and 110‘? Nose Gear retract angles. The Nose Gear units are steerable with an steering arm and 1/4" pin to attach a strut. These gear are available for use with any 7/16_„? or 1/2_„? dia. RoboStrut.

(Robart Electric Retract Control Unit Is Required To Operate)

Electric Retract Instructions

Dimension Drawing

Spare Parts List
